Training GNN on gravity-like system

This script generates Supplementary Figure 7. A GNN learns the motion rules governing a gravity-like system The simulation used to train the GNN consists of 960 particles of 16 different masses. The particles interact with each other according to gravity law.

First, we load the configuration file and set the device.

config_file = 'gravity_16'
figure_id = 'supp7'
config = ParticleGraphConfig.from_yaml(f'./config/{config_file}.yaml')
device = set_device("auto")

The following model is used to simulate the gravity-like system with PyTorch Geometric.

class GravityModel(pyg.nn.MessagePassing):
    """Interaction Network as proposed in this paper:
    https://proceedings.neurips.cc/paper/2016/hash/3147da8ab4a0437c15ef51a5cc7f2dc4-Abstract.html"""

    """
    Compute the acceleration of particles as a function of their relative position according to the gravity law.

    Inputs
    ----------
    data : a torch_geometric.data object

    Returns
    -------
    pred : float
        the acceleration of the particles (dimension 2)
    """

    def __init__(self, aggr_type=[], p=[], clamp=[], pred_limit=[], bc_dpos=[]):
        super(GravityModel, self).__init__(aggr='add')  # "mean" aggregation.

        self.p = p
        self.clamp = clamp
        self.pred_limit = pred_limit
        self.bc_dpos = bc_dpos

    def forward(self, data):
        x, edge_index = data.x, data.edge_index
        edge_index, _ = pyg_utils.remove_self_loops(edge_index)
        particle_type = to_numpy(x[:, 5])

        mass = self.p[particle_type]
        dd_pos = self.propagate(edge_index, pos=x[:, 1:3], mass=mass[:, None])
        return dd_pos

    def message(self, pos_i, pos_j, mass_j):
        distance_ij = torch.sqrt(torch.sum(self.bc_dpos(pos_j - pos_i) ** 2, axis=1))
        distance_ij = torch.clamp(distance_ij, min=self.clamp)
        direction_ij = self.bc_dpos(pos_j - pos_i) / distance_ij[:, None]
        dd_pos = mass_j * direction_ij / (distance_ij[:, None] ** 2)

        return torch.clamp(dd_pos, max=self.pred_limit)


def bc_pos(x):
    return torch.remainder(x, 1.0)


def bc_dpos(x):
    return torch.remainder(x - 0.5, 1.0) - 0.5

The training data is generated with the above Pytorch Geometric model

Vizualizations of the particle motions can be found in “decomp-gnn/paper_experiments/graphs_data/gravity_16/”

If the simulation is too large, you can decrease n_particles (multiple of 16) in “gravity_16.yaml”

p = torch.squeeze(torch.tensor(config.simulation.params))
model = GravityModel(aggr_type=config.graph_model.aggr_type, p=torch.squeeze(p), clamp=config.training.clamp,
              pred_limit=config.training.pred_limit, bc_dpos=bc_dpos)

generate_kwargs = dict(device=device, visualize=True, run_vizualized=0, style='color', alpha=1, erase=True, save=True, step=10)
train_kwargs = dict(device=device, erase=True)
test_kwargs = dict(device=device, visualize=True, style='color', verbose=False, best_model='20', run=0, step=20, save_velocity=True)

data_generate_particles(config, model, bc_pos, bc_dpos, **generate_kwargs)

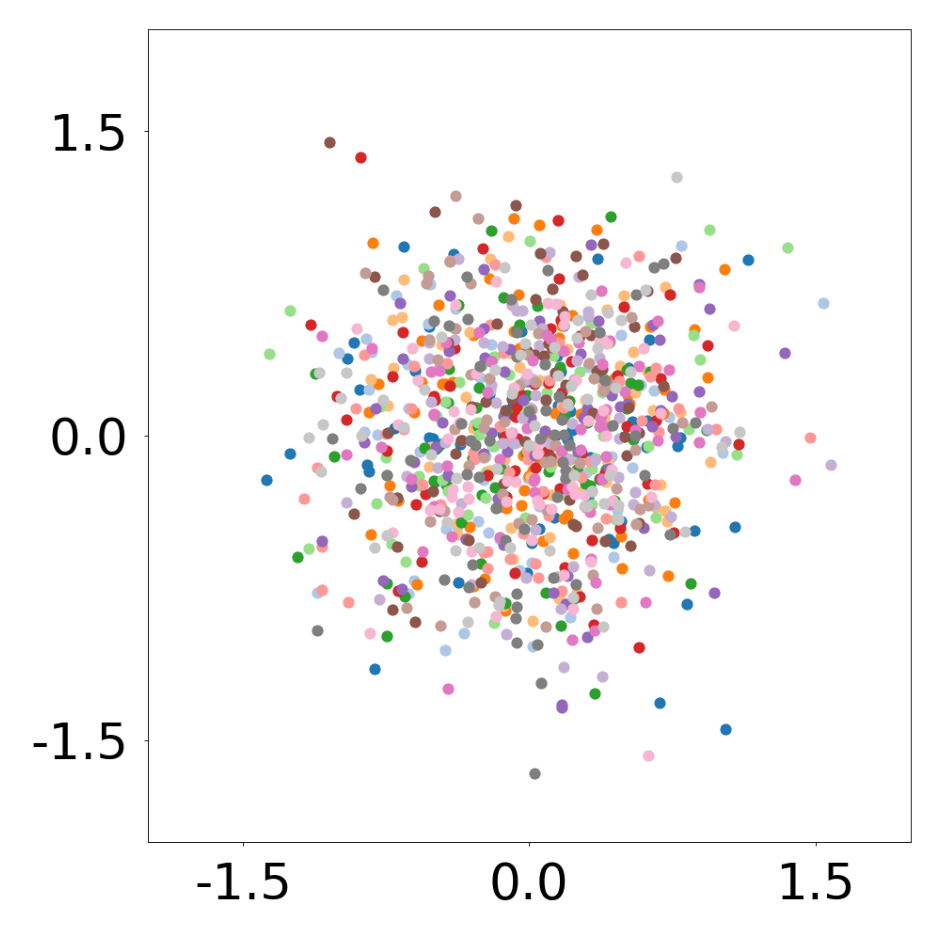

Initial configuration of the simulation. There are 960 particles. The colors indicate different masses.

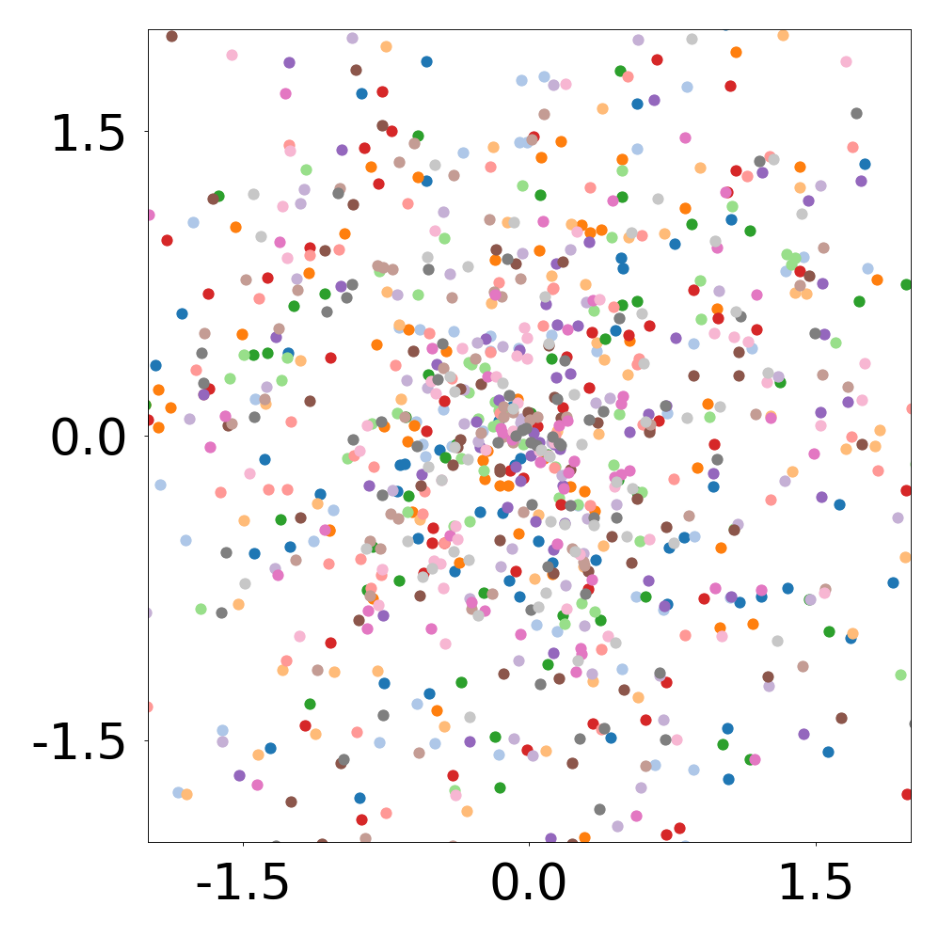

Frame 1800 out of 2000

The GNN model (see src/ParticleGraph/models/Interaction_Particle.py) is trained and tested.

Since we ship the trained model with the repository, this step can be skipped if desired.

if not os.path.exists(f'log/try_{config_file}'):
    data_train(config, config_file, **train_kwargs)

During training the embedding is saved in “paper_experiments/log/try_gravity_16/tmp_training/embedding” The plot of the pairwise interactions is saved in “paper_experiments/log/try_gravity_16/tmp_training/function”

The model that has been trained in the previous step is used to generate the rollouts.

data_test(config, config_file, **test_kwargs)

Finally, we generate the figures that are shown in Supplementary Figure 7. The results of the GNN post-analysis are saved into ‘decomp-gnn/paper_experiments/log/try_gravity_16/results’.

config_list, epoch_list = get_figures(figure_id, device=device)

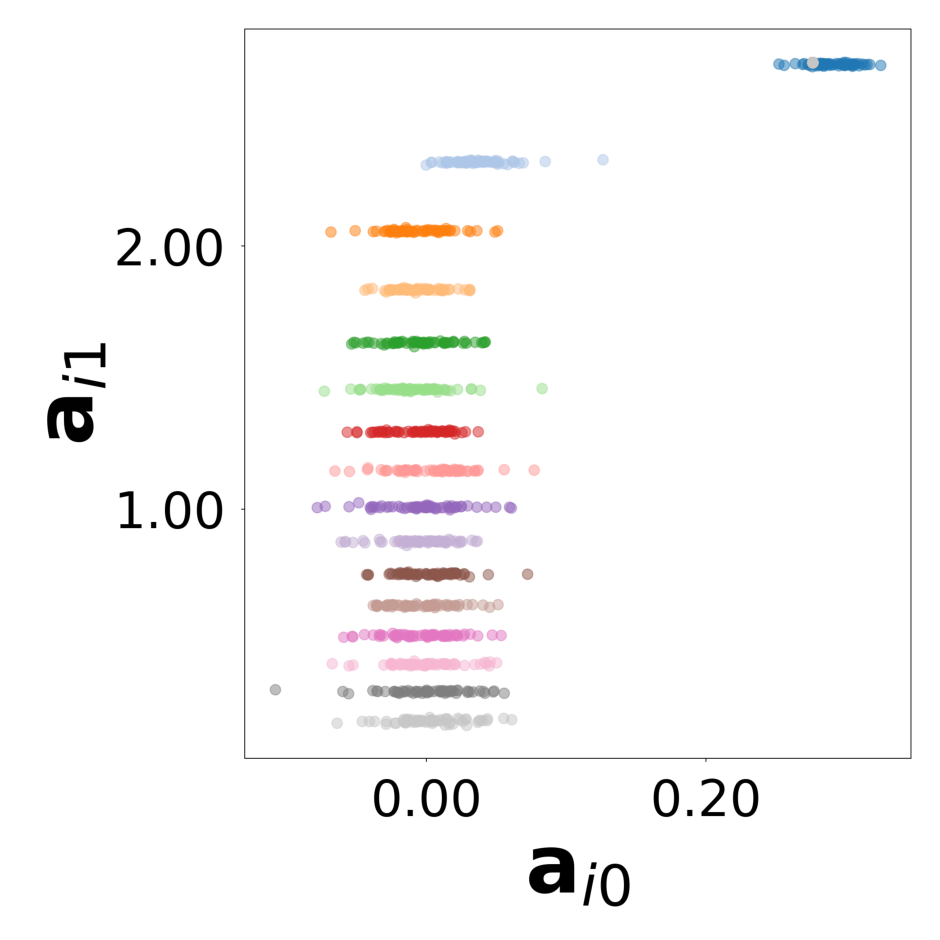

Learned latent vectors (x960)

Learned interaction functions (x16)

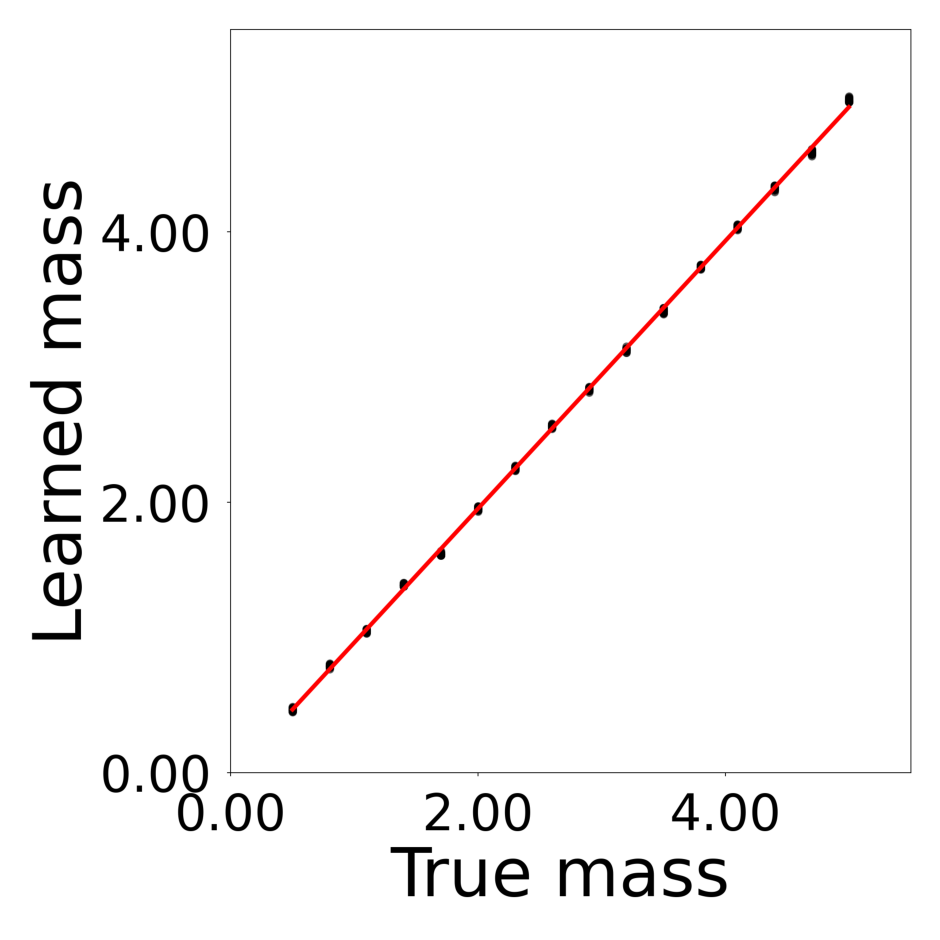

Learned masses (x16)

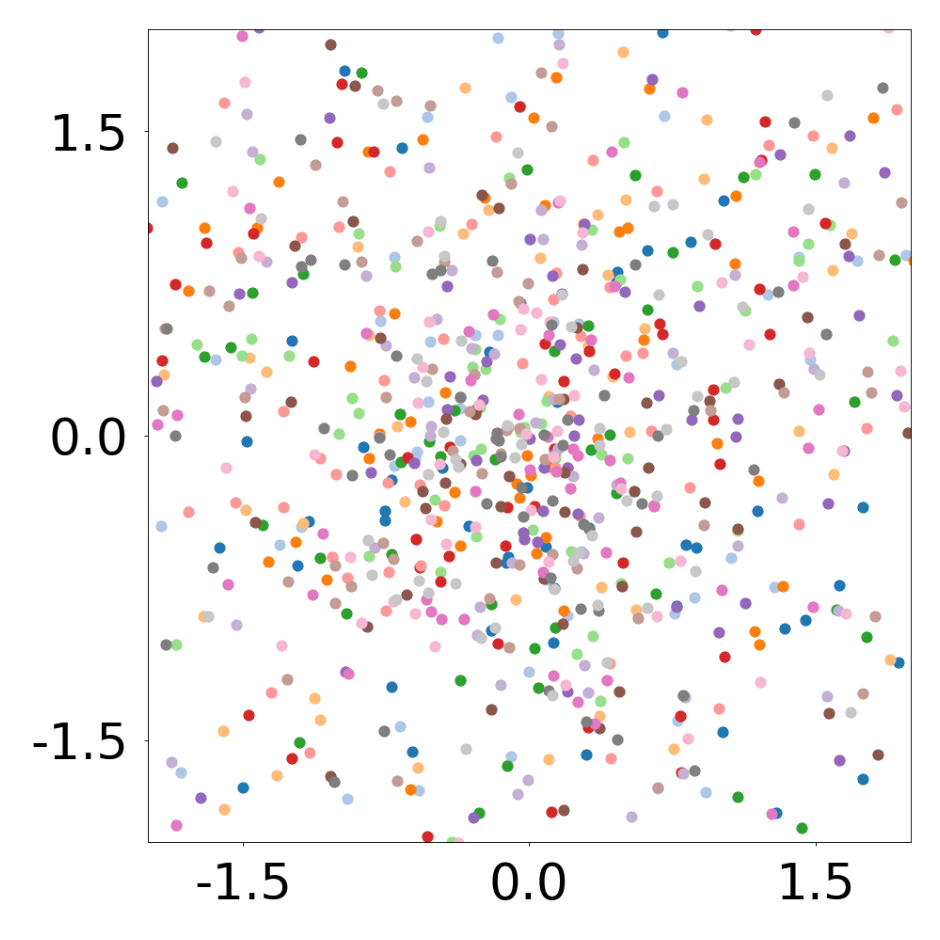

GNN rollout inference at frame 1980

All frames can be found in “decomp-gnn/paper_experiments/log/try_gravity_16/tmp_recons/”
