Training GNN on boids (16 types)

This script generates figures shown in Supplementary Figures 4, 11 and 12. A GNN learns the motion rules of boids (https://en.wikipedia.org/wiki/Boids). The simulation used to train the GNN consists of 1792 particles of 16 different types. The boids interact with each other according to 16 different laws.

First, we load the configuration file and set the device.

config_file = 'boids_16_256'
figure_id = 'supp4'
config = ParticleGraphConfig.from_yaml(f'./config/{config_file}.yaml')
device = set_device("auto")

The following model is used to simulate the boids system with PyTorch Geometric.

class BoidsModel(pyg.nn.MessagePassing):
    """Interaction Network as proposed in this paper:
    https://proceedings.neurips.cc/paper/2016/hash/3147da8ab4a0437c15ef51a5cc7f2dc4-Abstract.html"""

    """
    Compute the acceleration of Boids as a function of their relative positions and relative positions.
    The interaction function is defined by three parameters p = (p1, p2, p3)

    Inputs
    ----------
    data : a torch_geometric.data object

    Returns
    -------
    pred : float
        the acceleration of the Boids (dimension 2)
    """

    def __init__(self, aggr_type=[], p=[], bc_dpos=[], dimension=2):
        super(BoidsModel, self).__init__(aggr=aggr_type)  # "mean" aggregation.

        self.p = p
        self.bc_dpos = bc_dpos
        self.dimension = dimension

        self.a1 = 0.5E-5
        self.a2 = 5E-4
        self.a3 = 1E-8
        self.a4 = 0.5E-5
        self.a5 = 1E-8

    def forward(self, data=[], has_field=False):
        x, edge_index = data.x, data.edge_index

        if has_field:
            field = x[:,6:7]
        else:
            field = torch.ones_like(x[:,0:1])

        edge_index, _ = pyg_utils.remove_self_loops(edge_index)
        particle_type = to_numpy(x[:, 1 + 2*self.dimension])
        parameters = self.p[particle_type, :]
        d_pos = x[:, self.dimension+1:1 + 2*self.dimension].clone().detach()
        dd_pos = self.propagate(edge_index, pos=x[:, 1:self.dimension+1], parameters=parameters, d_pos=d_pos, field=field)

        return dd_pos

    def message(self, pos_i, pos_j, parameters_i, d_pos_i, d_pos_j, field_j):
        distance_squared = torch.sum(self.bc_dpos(pos_j - pos_i) ** 2, axis=1)  # distance squared

        cohesion = parameters_i[:,0,None] * self.a1 * self.bc_dpos(pos_j - pos_i)
        alignment = parameters_i[:,1,None] * self.a2 * self.bc_dpos(d_pos_j - d_pos_i)
        separation = - parameters_i[:,2,None] * self.a3 * self.bc_dpos(pos_j - pos_i) / distance_squared[:, None]

        return (separation + alignment + cohesion) * field_j


def bc_pos(x):
    return torch.remainder(x, 1.0)


def bc_dpos(x):
    return torch.remainder(x - 0.5, 1.0) - 0.5

The training data is generated with the above Pytorch Geometric model

Vizualizations of the boids motion can be found in “decomp-gnn/paper_experiments/graphs_data/graphs_boids_16_256/Fig/”

If the simulation is too large, you can decrease n_particles (multiple of 16) in “boids_16_256.yaml”

p = torch.squeeze(torch.tensor(config.simulation.params))
model = BoidsModel(aggr_type=config.graph_model.aggr_type, p=torch.squeeze(p), bc_dpos=bc_dpos, dimension=config.simulation.dimension)

generate_kwargs = dict(device=device, visualize=True, run_vizualized=0, style='color', alpha=1, erase=True, save=True, step=100)
train_kwargs = dict(device=device, erase=True)
test_kwargs = dict(device=device, visualize=True, style='color', verbose=False, best_model='20', run=0, step=50, save_velocity=True)

data_generate_particles(config, model, bc_pos, bc_dpos, **generate_kwargs)

Initial configuration of the simulation. There are 1792 boids. The colors indicate different types.

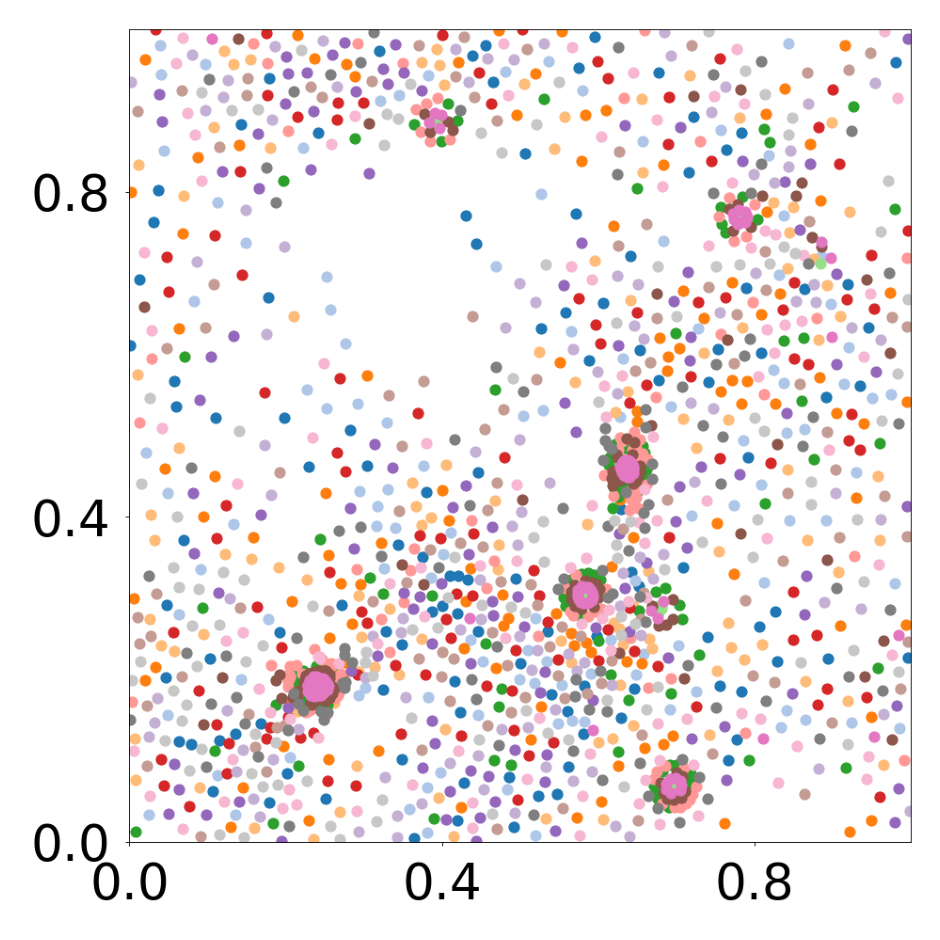

Frame 7500 out of 8000

The GNN model (see src/ParticleGraph/models/Interaction_Particle.py) is trained and tested.

Since we ship the trained model with the repository, this step can be skipped if desired.

if not os.path.exists(f'log/try_{config_file}'):
    data_train(config, config_file, **train_kwargs)

During training the plot of the embedding are saved in “paper_experiments/log/try_boids_16_256/tmp_training/embedding” The plot of the pairwise interactions are saved in “paper_experiments/log/try_boids_16_256/tmp_training/function”

The model that has been trained in the previous step is used to generate the rollouts.

data_test(config, config_file, **test_kwargs)

Finally, we generate figures from the post-analysis of the GNN. The results of the GNN post-analysis are saved into ‘decomp-gnn/paper_experiments/log/try_boids_16_256/results’.

config_list, epoch_list = get_figures(figure_id, device=device)

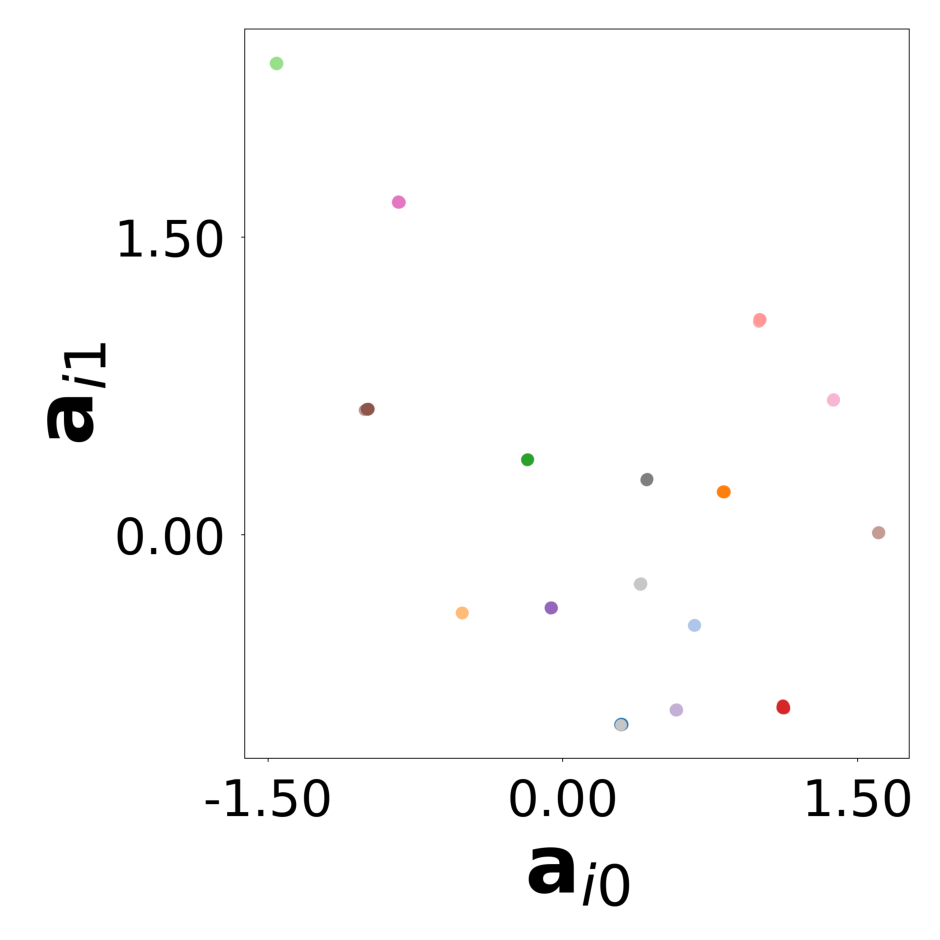

Learned latent vectors (x4800)

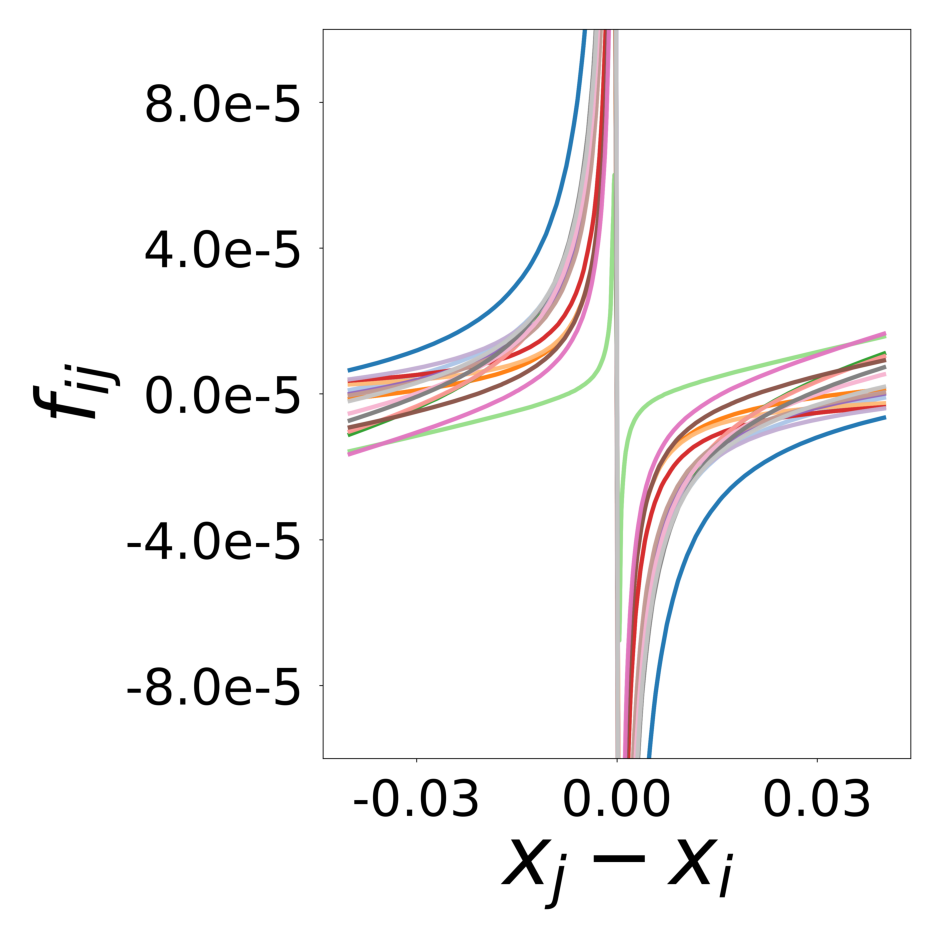

Learned interaction functions (x16)

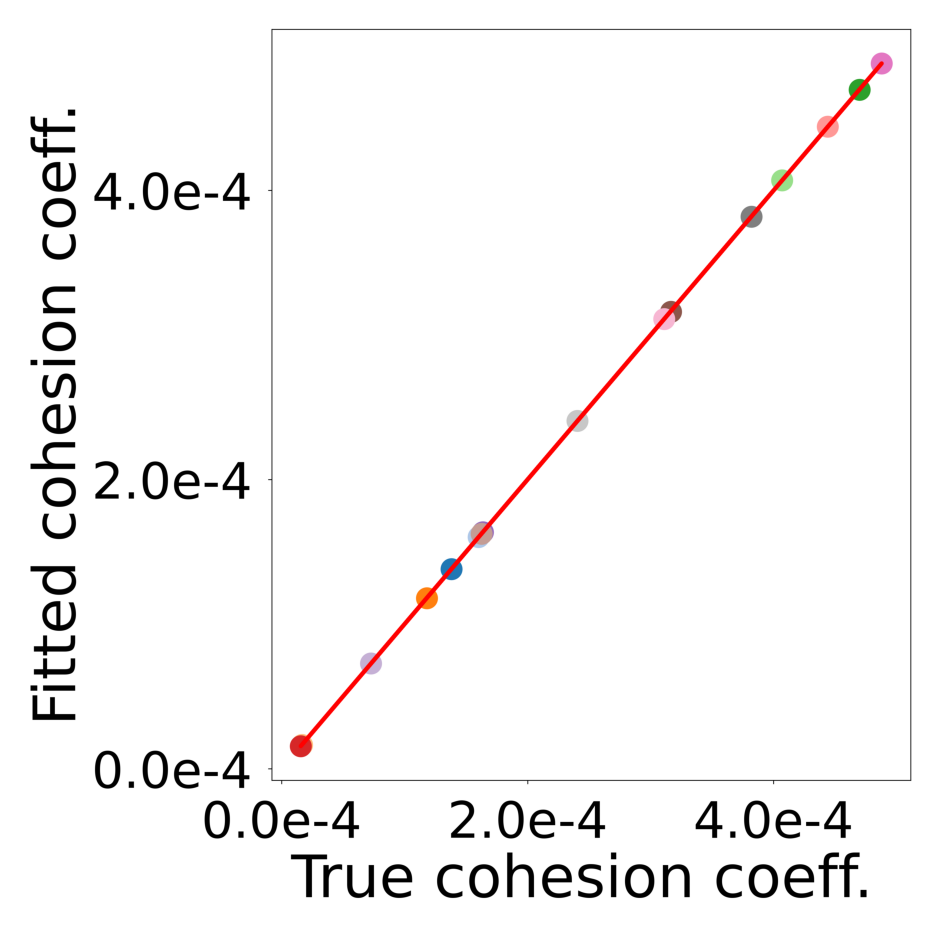

Learned cohesion parameters

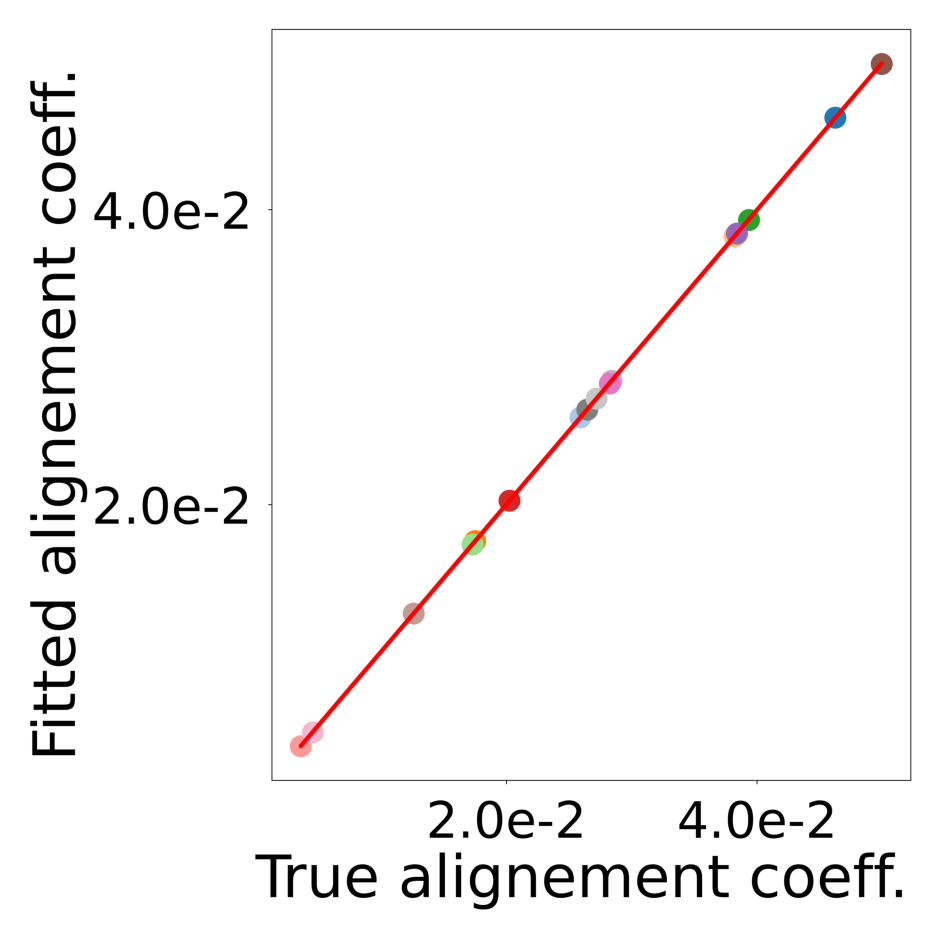

Learned alignment parameters

Learned separation parameters

GNN rollout inference at frame 7950

All frames can be found in “decomp-gnn/paper_experiments/log/try_boids_16_256/tmp_recons/”
