Training GNN on attraction-repulsion (64 particle types)

This script creates the sixth column of paper’s Figure 3. A GNN learns the motion rules of an attraction-repulsion system. The simulation used to train the GNN consists of 4800 particles of 64 different types. The particles interact with each other according to three different attraction-repulsion laws.

First, we load the configuration file and set the device.

config_file = 'arbitrary_64'
figure_id = '3_6'
config = ParticleGraphConfig.from_yaml(f'./config/{config_file}.yaml')
device = set_device("auto")

The following model is used to simulate the attraction-repulsion system with PyTorch Geometric.

class AttractionRepulsionModel(pyg.nn.MessagePassing):
    """
    Compute the speed of particles as a function of their relative position according to an attraction-repulsion law.
    The latter is defined by four parameters p = (p1, p2, p3, p4) and a parameter sigma.

    See https://github.com/gpeyre/numerical-tours/blob/master/python/ml_10_particle_system.ipynb
    """

    def __init__(self, p, sigma, bc_dpos, dimension=2):
        super(AttractionRepulsionModel, self).__init__(aggr='mean')

        self.p = p
        self.sigma = sigma
        self.bc_dpos = bc_dpos
        self.dimension = dimension

    def forward(self, data: Data):
        x, edge_index = data.x, data.edge_index

        edge_index, _ = pyg_utils.remove_self_loops(edge_index)
        particle_type = to_numpy(x[:, 1 + 2 * self.dimension])
        parameters = self.p[particle_type,:]
        d_pos = self.propagate(edge_index, pos=x[:, 1:self.dimension + 1], parameters=parameters)
        return d_pos


    def message(self, pos_i, pos_j, parameters_i):

        relative_position = self.bc_dpos(pos_j - pos_i)
        distance_squared = torch.sum(relative_position ** 2, dim=1)  # squared distance
        f = (parameters_i[:, 0] * torch.exp(-distance_squared ** parameters_i[:, 1] / (2 * self.sigma ** 2))
             - parameters_i[:, 2] * torch.exp(-distance_squared ** parameters_i[:, 3] / (2 * self.sigma ** 2)))
        velocity = f[:, None] * relative_position

        return velocity


def bc_pos(x):
    return torch.remainder(x, 1.0)


def bc_dpos(x):
    return torch.remainder(x - 0.5, 1.0) - 0.5

The training data is generated with the above Pytorch Geometric model.

p = torch.squeeze(torch.tensor(config.simulation.params))
sigma = config.simulation.sigma
model = AttractionRepulsionModel(
    p=p,
    sigma=sigma,
    bc_dpos=bc_dpos,
    dimension=config.simulation.dimension
)

generate_kwargs = dict(device=device, visualize=True, run_vizualized=0, style='color', alpha=1, erase=True, save=True, step=10)
train_kwargs = dict(device=device, erase=True)
test_kwargs = dict(device=device, visualize=True, style='color', verbose=False, best_model='20', run=0, step=1, save_velocity=True)

data_generate_particles(config, model, bc_pos, bc_dpos, **generate_kwargs)

The GNN model (see src/ParticleGraph/models/Interaction_Particle.py) is trained and tested.

Since we ship the trained model with the repository, this step can be skipped if desired.

if not os.path.exists(f'log/try_{config_file}'):
    data_train(config, config_file, **train_kwargs)

The model that has been trained in the previous step is used to generate the rollouts. The rollout visualization can be found in paper_experiments/log/try_arbitrary_64/tmp_recons.

data_test(config, config_file, **test_kwargs)

Finally, we generate the figures that are shown in Figure 3.

config_list, epoch_list = get_figures(figure_id, device=device)

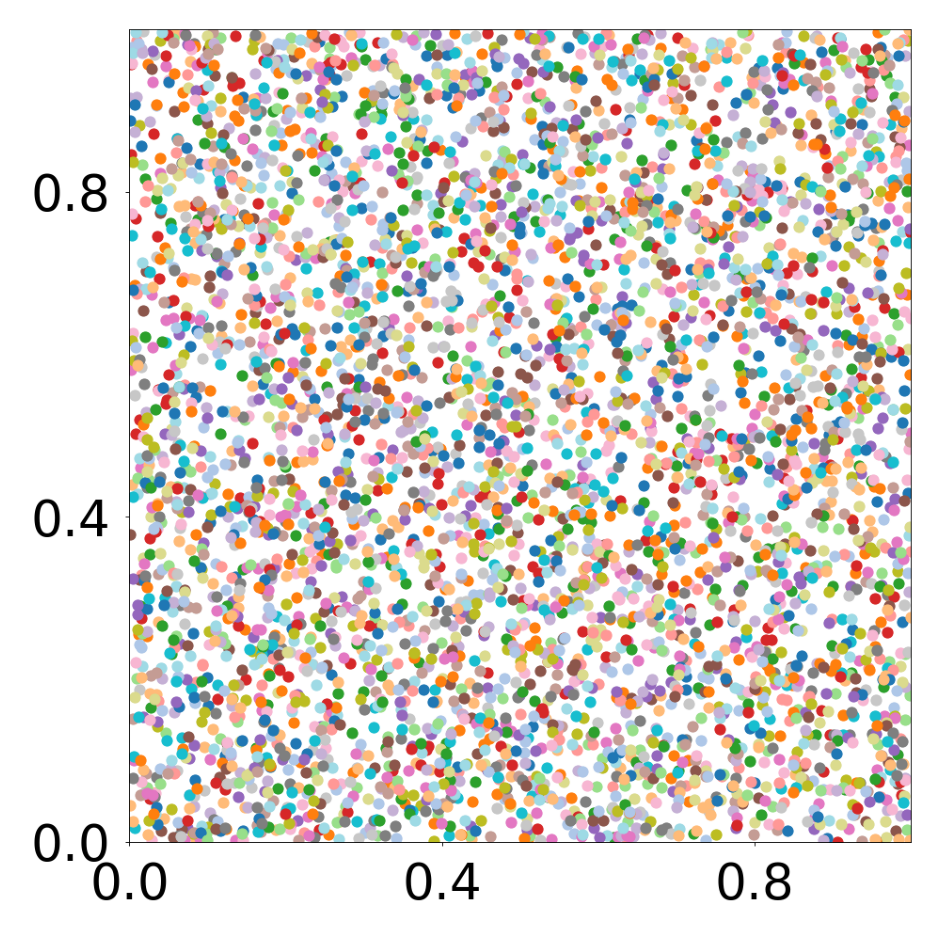

Initial configuration of the test training dataset. There are 4800 particles. Colors indicate the particle types.

Final configuration at frame 1000

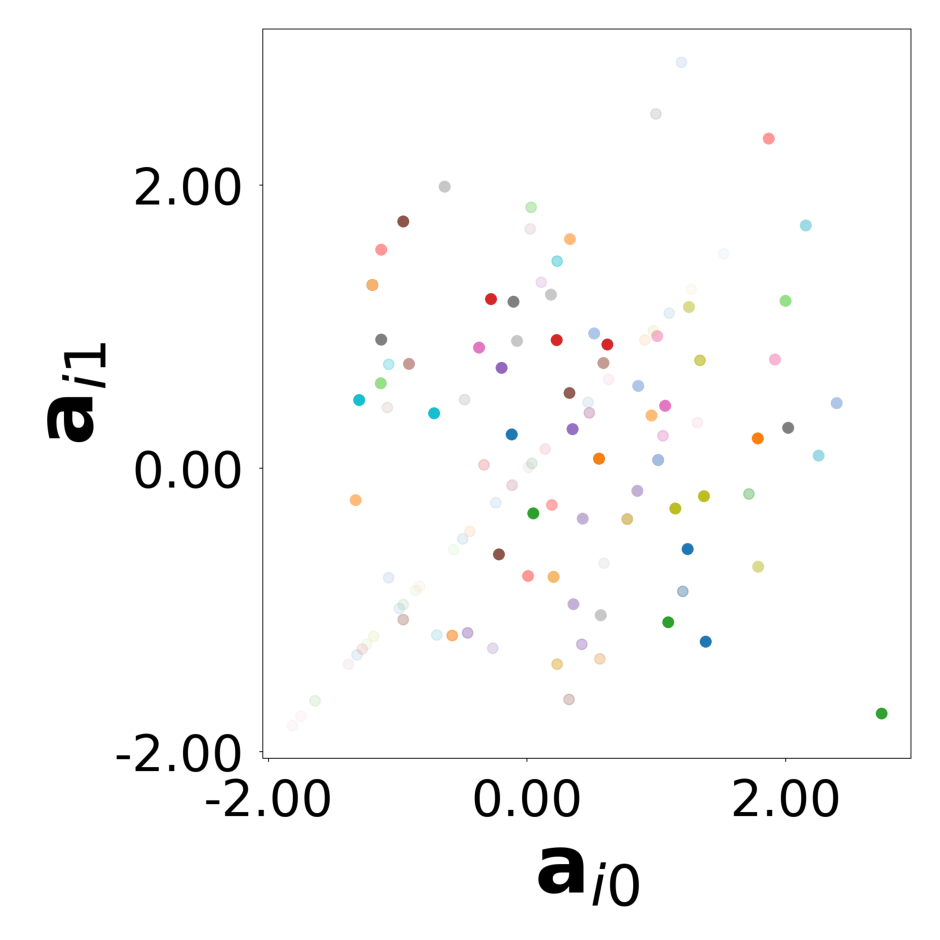

Learned latent vectors (x4800)

Learned interaction functions (x64)

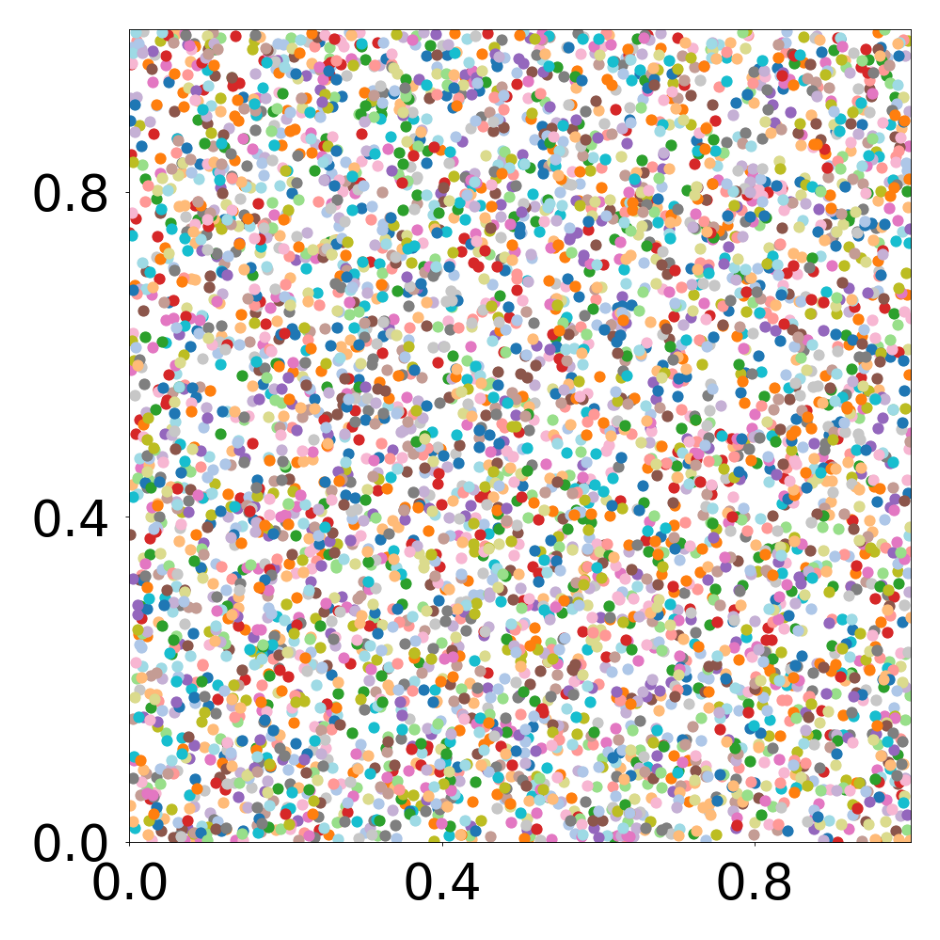

Initial random configuration for rollout

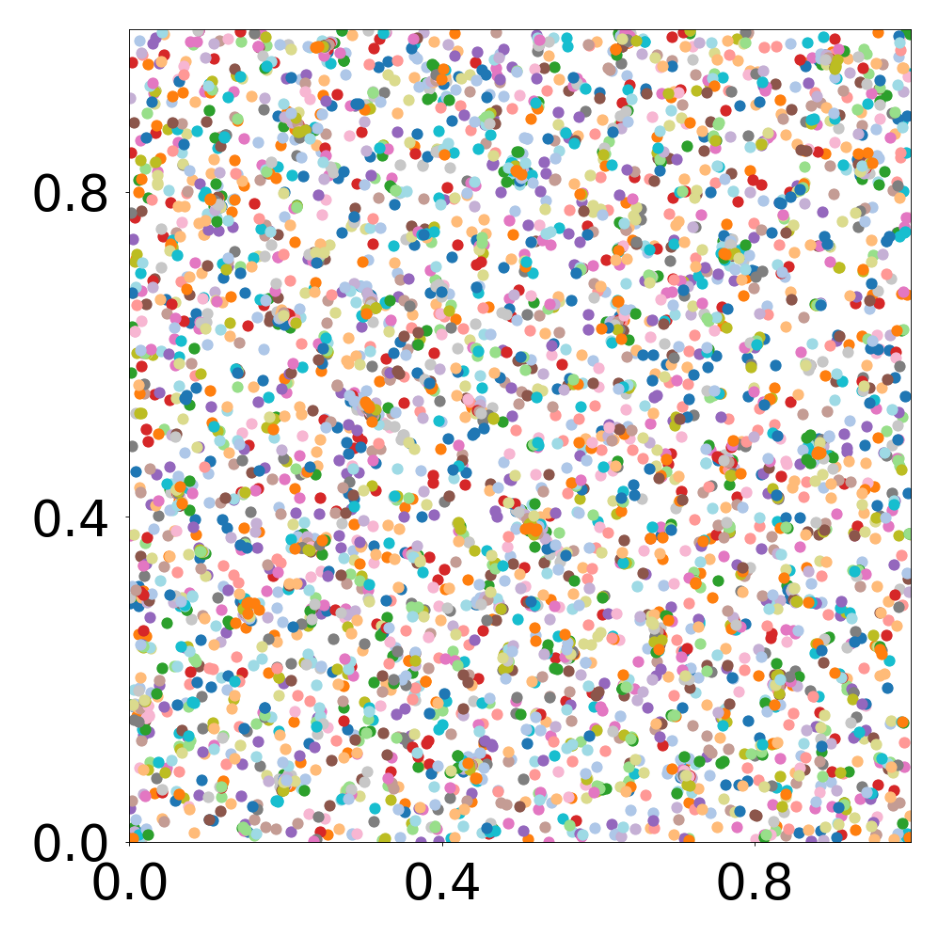

Final configuration in rollout at frame 1000
